Output reference voltage +10 V, +3%, max. load 10 mA
Designed for heavy duty at 50°C Ambient Temperature
Protections Overvoltage, undervoltage, earth fault, mains supervision, motor phase supervision, overcurrent, unit overtemperature, motor overload, motor stall, motor underload, short-circuit of +24 V and +10 V reference voltages.

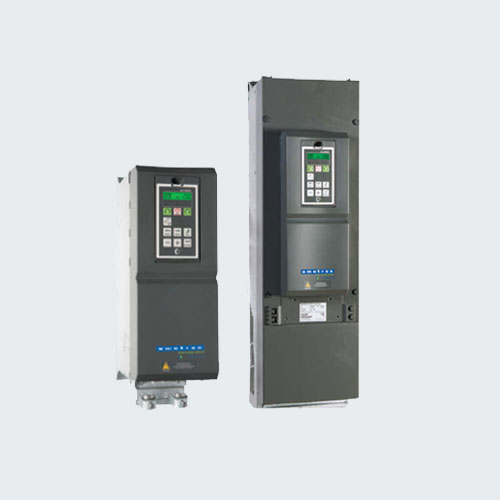

FDU Series Secure the Flow & Save Energy - (Variable Torque Drive)
Input voltage Uin 208…240 V; 380…500 V; 525...690 V; –10%…+10%
Input frequency 45…66 Hz
Analogue input - 4 Nos
Analogue Output - 2 Nos
Digital inputs - 8 Nos.
Digital Output - 2 Nos.
Relay Output - 3 Nos.
Auxiliary voltage +24 V, ±15%, max. 250 mA
Output reference voltage +10 V, +3%, max. load 10 mA
Protections Overvoltage, undervoltage, earth fault, mains supervision, motor phase supervision, overcurrent, unit overtemperature, motor overload, motor stall, motor underload, short-circuit of +24 V and +10 V reference voltages.
VFX Series - High Dynamics for Demanding Applications
Suitable for : Crushers, Hoist, Mills, Centrifuge, Mixers, Cranes
Range: 0.55KW to 3000KW
Input voltage Uin 208…240 V; 380…500 V; 525...690 V; –10%…+10%
Input frequency 45…66 Hz
Analogue input - 4 Nos
Analogue Output - 2 Nos
Digital inputs - 8 Nos.
Digital Output - 2 Nos.
Relay Output - 3 Nos.
Auxiliary voltage +24 V, ±15%, max. 250 mA
Output reference voltage +10 V, +3%, max. load 10 mA
Protections Overvoltage, undervoltage, earth fault, mains supervision, motor phase supervision, overcurrent, unit overtemperature, motor overload, motor stall, motor underload, short-circuit of +24 V and +10 V reference voltages.
